Product pictures

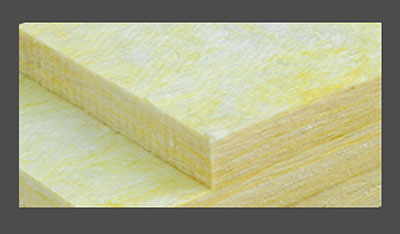

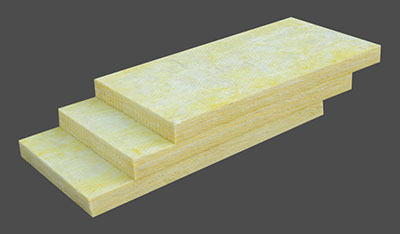

Air conditioning panel

Gerui wool air conditioning board is used in HVAC system, which makes the air conditioning system achieve the function of high-efficiency heat preservation, and can save energy and reduce consumption, and reduce the investment cost. In addition, the utility model has the advantages of sound absorption and noise reduction, reducing the building load, making quickly, shortening the construction period, etc.

Performance index

Project Company Product index Standard
Density Kg/m³ 64-100 GB/T 5480.3
Average fiber diameter μm 5-8 GB/T 5480.4
Thermal conductivity w/m.k ≤0.04 GB/T 10294
Hydrophobicity rate % ≥98 GB/T 10299
Hygroscopicity % ≤3 GB/T 5480.7
Sound absorption coefficient % 1.03 determination of product reverberation GB J47-83
Incombustibility - Non combustible class A GB 8624-1997
Service temperature ≤120 GB11835-89

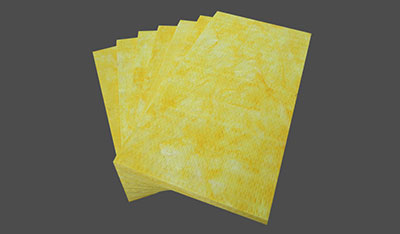

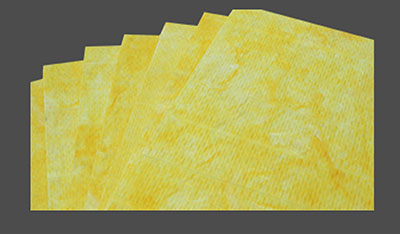

Colored glass wool
